A4 A3+ Automatic Feed Paper Digital Self Adhesive Sticker Paper Label Cutting Plotter Machine

We continue to shorten the product development cycle, reduce the cost of product development, significantly improve the quality and performance of Automatic A4 Paper Making Machine, A4 Paper Cutting Machine Automatic, Medical Drapes Folding Machine, improve our own brand, and enhance our ability of independent research and development. We focus on scientific and technological innovation, quality first, and comprehensively improve the physical quality of our products and service quality. We have been searching ahead to even better cooperation with overseas buyers dependant on mutual benefits. Over the years, we have attached great importance to market development and pursued the concept of integrity first and service first.

Capacity:

1.Single roll unwinding : 1.5 ream/min (900 ream/day)(2.25 ton paper/day)

2.Double roll unwinding : 3 ream/min (1800 ream/day)(4.5 ton paper/day)

3.Four roll unwinding:6 ream/min(3600 ream/day)(9 ton paper/day)

Technical Parameter

Characteristic:

●The machine adopts servo motor,frequency controlling speed.PLC Control System,including automatic tension control,automatic counting,setting cutting size,automatic stop by setting time&number and other many functions.

●Unwinding jumbo roll part use automatic air shaft(3/6 inch,optional) or shaft-less(3/6 inch,optional)

●Unwinding jumbo roll part adopts EPC system,automatic correcting web material position and keeping high cutting precision.

●Machine shelf adopt casting steel,guillotine knife use heavy casting structure,traction rollers use static balance processing aluminum rollers.

●Automatic stacking&trimming finished sheets,using two stage motors to convey sheets to broadside.The convey broadside model machine can link to automatic packaging machine.

Splice table.

Splice table situated between the cantilever unwind and the slitting unit, well reachable by the operator from his workspace at the cantilever unwind.

This splice table will also be used to splice rolls from the shaftless unwind

It should cover the working width of the machine. It should be about 30 cm deep in the machine direction including the clamping bars.

It has to have 2 hardened steel cutting strips in the middle between the clamping bars with a gap

between them of 2 mm wide and 10 mm deep.

The clamping bars in up position should be at least 25 mm free from the table for easy feeding of the

web.

Maximum pulling force on the clamping bars cannot exceed 50 kg total per clamping bar

A quick change slitting cutter technology:

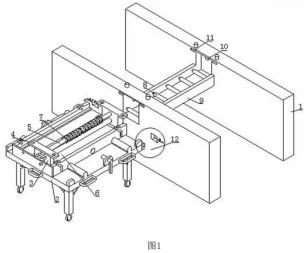

The cutter quick change structure of the slitting machine, when replacing the 7, push up the 126, pull the 127 to make the 124 retreat, and the 126 descends under the action of the 125, blocking the 127 On the inner side, push the 122 into the 121, and then push up the 126 again, and push the 127 to make the 124 enter the 123. At this time, the 126 is under the action of the 125. Down, manual 2/3 page 4 Block the outer side of the 127 to prevent the 124 from retreating, complete the fixed connection between the 2 and the 1, and then push the 3 into the 9 to make the 4 is inserted into the 11 and locked and fixed with locking bolts to complete the replacement of the 7.

The A4 A3+ Automatic Feed Paper Digital Self Adhesive Sticker Paper Label Cutting Plotter Machine we produced have the characteristics of stable performance, high precision, and low processing loss. Since its establishment, our company has made remarkable achievements with the care and support of governments at all levels, all walks of life, customers and friends, as well as the efforts and dedication of all employees. Enterprises will adopt a variety of measures to cultivate a group of innovative talents, cultivate a group of innovative achievements, establish a group of innovative models, advocate an innovative culture, guide the society to establish an awareness of innovation, and improve the ability of independent innovation.
