Showroom

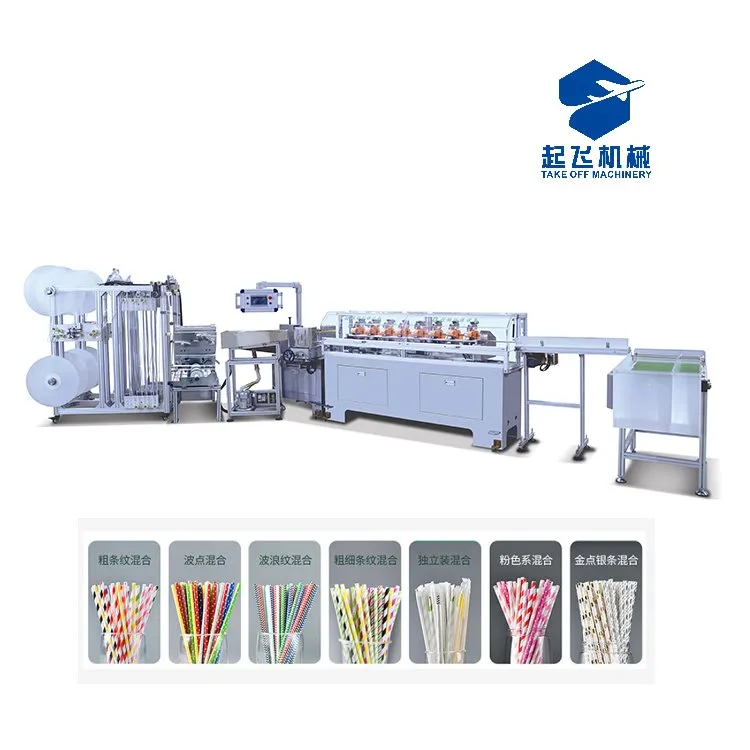

Factory Supply Paper Straw Maker Machine
Paper Layers:3 -5layers
Paper Thickness(from inside to outside):120g/m²,120g/m²,60g/m²
We are committed to integrating in-depth industry resources and advanced platform technology to rationalize the allocation of resources for the Film Sheeter Machine, Panty Liner Making Machine, Pet Pad Machine industry. It is accompanied by changes in consumption concept, the core of our company management from the 'product-centric' transformation into a 'customer-centric'. We have made great progress with the continuous support of our customers.
Parameter
|
Raw Material |
Pure Wood Pulp Paper |
|
Paper Layers |
3 -5layers |
|
Paper Thickness(from inside to outside) |
120g/m²,120g/m²,60g/m² |
|
Tube Thickness |
0.3-2mm |
|
Running Speed |
35-50meters/min |
|
Tube Size |
4.5-12mm |
|
Cutting System |
servo motors,6 set knives |
|
Cutting Length |
70-1050mm |
|
Power Source |
380V 50Hz |
|
Operation Person |
1-2person |
|
Dimensions |
|
|
Paper Roll Bracket |
1600*2000*1100mm |
|
Main Part |
2000*1700*900mm |
|
Collection Part |
1900*2000*1600mm |
|
Weight |
1400kg |
Machine advantage:
1. The main machine connection with packing machine,reduce the man power
2. Oven provide high temperature to sterilization,let straw keep sterility before packing
3. Our no glue straw can stay at 100℃ water more than 5 min and stay cold water more than 1 day,no glue let the straw can be degradable
4. Reduce the waste product which cause by coating glue
5. For same GSM material paper,the straw hardness will be high than glue type straw
6. No need build the barking room which is use for drying the water in the straw which let straw don’t be go mouldy
7. The straw won’t go mouldy which more than 2 years.
Machine parts:
1. Paper unwinding device:3-5 layer ,splicing material automatic
2. Heater device: have sterilization function
3. Twine device
4. Cutter device
5. Conveyor belt and collector box
6. Touch screen
7. Stainless steel machine body
8. Glass cover
9. Low-voltage apparatus
Our story:
At 2018-2019 year, paper straw is very popular because Europe ban the plastic straw.The paper straw be the best succedaneum .In china ,a lot of factory buy the paper straw machine to produce this product.But this product have a big problem ,it must need 10-24hours to drying the water in the straw,some factory don’t do enough time drying,so their straw go mouldy when reach Europe port.We company want solve this problem,so we cooperate with Korea client to use no glue technology,we success at the end of 2019 year.Our Korea client buy our machine to make no glue paper straw and supply to Korea Starbucks.
We've one of the most advanced generation tools, experienced and qualified engineers and workers, recognized good quality manage systems and a friendly skilled product sales workforce pre/after-sales support for Factory Supply Paper Straw Maker Machine. Over the years, our company insists on the management principle of respecting the market and creating multi-dimensional win-win space. Our company is a harmonious and vigorous company with a young team with rigorous work, exquisite technology and high cooperation.
