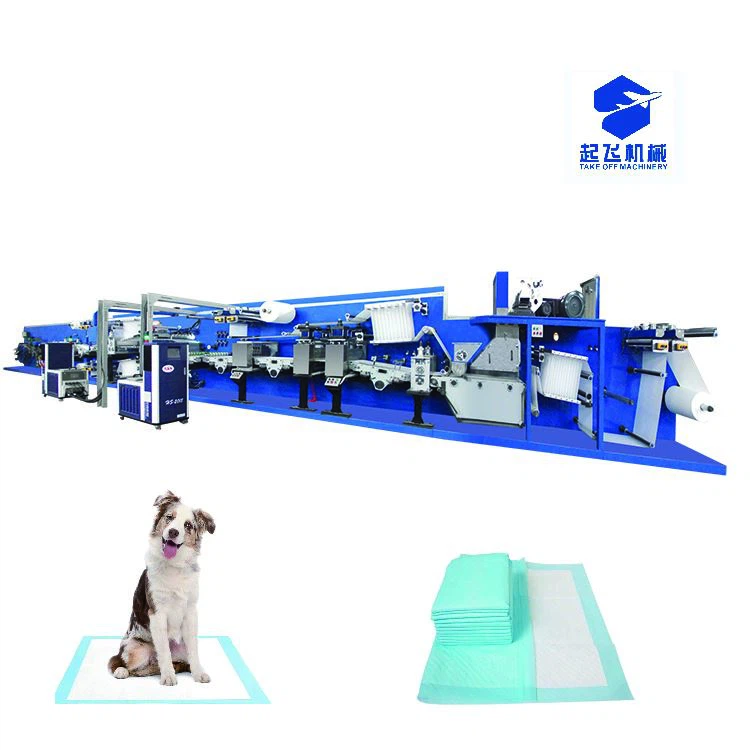

Full Servo Underpad Manufacturing Machine Pet Training Pad Making

Full Servo Underpad Manufacturing Machine Pet Training Pad Making

175 KW(exclude glue applicator)
Air pressure:1100L/MIN, 6-8BARs
Finish product rate≥98%(exclude caused by glue applicator and splicing)
Send Inquiry
Product Introduction

We use advanced design, manufacturing and quality management systems to produce high quality Surgical Drapes Machine, Copier Paper Cutting Machine, Paper Sheet Cutting Machine. We promise to deliver satisfactory products to your hands with the best quality and the fastest speed, and use the best solutions and the most enthusiastic and thoughtful after-sales service to solve the problems during use. The company adopts an open mind to recruit talents, care for employees, give full play to the initiative of employees, and constantly pursue innovation and perfection. We establish the concept of safe development, promote the idea of life first, and carry out the policy of safety first.





Main parameter

1.1)Product size:length 350-1800mm,width 300-600mm,thickness can be choose

1.2)Product structure:surface layer,tissue paper,pulp,SAP,PE film

1.3)Supply:380 V 50HZ

1.4)Power:175 KW(exclude glue applicator)

1.5)Air pressure:1100L/MIN, 6-8BARs

1.6)Finish product rate≥98%(exclude caused by glue applicator and splicing)

Model

Width

Speed(m/min)

Driven Mode

TO-BKA-600

600mm

300

Full-servo

TO-BKA-800

800mm

250

Full-servo

TO-BKB-600

600mm

200

Semi-servo

TO-BKB-800

800mm

150

Semi-servo

TO-BKC-600

600mm

150

Frequency

TO-BKC-800

800mm

120

Frequency

TO-BKD-600

600mm

80

Single motor

TO-BKD-800

800mm

60

Single motor


Optional part


Release paper device

(optional)

Servo motor

(optional)

Parts brand and origin

China or import parts

Stacker

(optional)

Manual packing machine

(optional)

Full auto packing machine

(optional)

Glue applicator machine

China or USA

Recycled pulp device

(optional)

Glass safety door

(optional)

Camera monitoring system

(optional)

Dust collection machine

(optional)


FAQ:

1.How many workers are need for a production line?

A: the machine need 2 people to run and also need 5-8 people for packing work.If you buy full auto packing machine,you can reduce the packing people cost.

2.Did this machine not only can make medical underpad ,but also can make puppy training pad?

A:Yes,this machine all can make.Their difference are underpad is more thick and pet pad is more thin because underpad demand is higher.

3.How many types of raw material did the pad use and if your company can provider them?

A:The raw material have 6 types,and we company also provider the raw material.The material include wood pulp,SAP(super absorbent polymer),tissue(down tissue and up tissue),non woven( spunbond non woven fabrics),bottom film(PE),hot melt glue.

4.Did run the machine need high technology?

A:Run machine not need very high technology because our machine is full automatic.But we advise you hire a people who know machinery to maintain the machine.

5.How many years experience did you company have to make this machine?

A:we because make this machine at 2008 year,and we become the best machine manufacturer in China.
