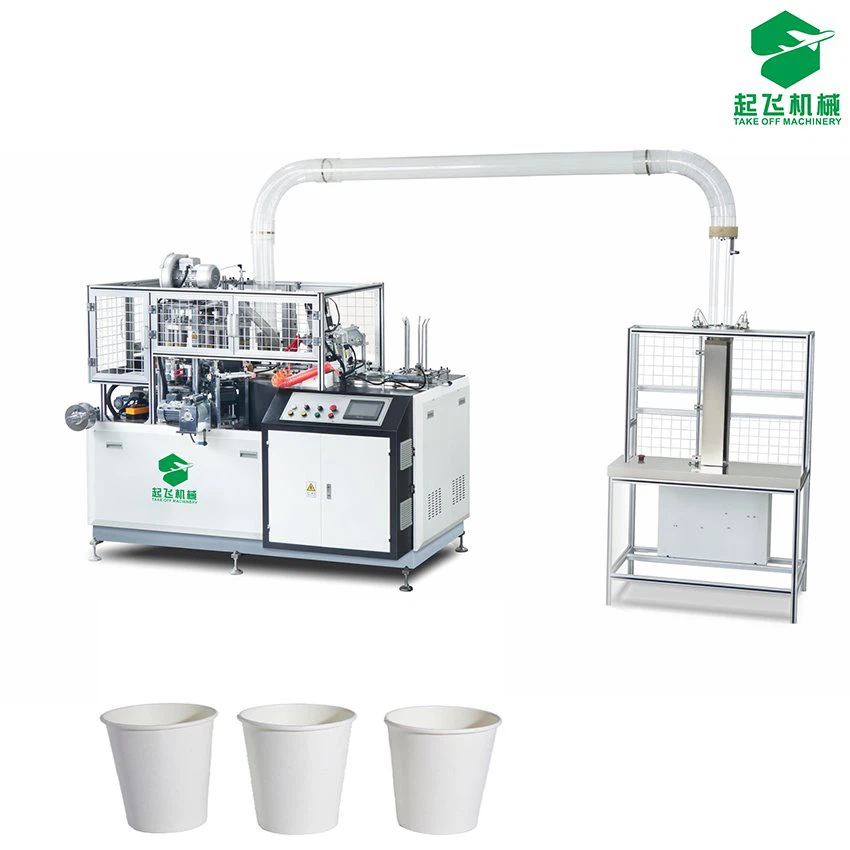

Automatic Paper Cup Machine
Ruian Take Off Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of automatic paper cup machine in China. If you're going to buy high quality automatic paper cup machine, welcome to get more information from our factory. For price consultation, contact us.
Parameter
Name | PAPER CUP MACHINE | |
Model | TO-S800型 | |
Paper Cup Size | 3-16 OZ | |
Raw Material | One-side or two-side PE coated paper(Singe PE or Double PE coated paper) | |
Speed | 75-85 pcs/min | |
Suitable paper weight | 100-300g/㎡；±20g/㎡ | |
Voltage supply | 380V(220V) 50HZ | |
cup size | bottom35-70mm，top45-90mm，high32-135mm | |
Working Air Source | 0.4-0.6Mpa; 0.4m³/min | |
General power | 6kw | |
Net weight | 2000kg | |
| Measurement (mm) | Main machine | L:2100mm;W:1200mm;H:1800mm |
Cup collector 100kgs | L:900mm;W:600mm;H:1500mm | |
Cup Side Sealing | EVERGREEN Ultrasonic | |
Bottom Knurling | Heat blowing air | |
paper cup machine technology:
The existing double-layer paper cup includes an inner cup and an outer paper tube, and the inner cup and the outer paper tube are made of cold glue or hot melt.
Glue is used for bonding, and the use of colloid will affect the cleanliness of the work surface and the environmental sanitation of the workshop during the production process.
will increase resource consumption.
This kind of knurled
The sticking machine includes a frame, and the frame is provided with an outer paper tube forming device, and is characterized in that: the frame is also provided with a rotary
The plate and the inner cup transfer device, the outer circumference of the turntable is provided with a circle of cup molds, and the outer circumference of the turntable is sequentially provided with an upper inner cup station, an upper outer cup
The paper tube sleeve station, the cup bottom preheating station, the bottom rolling station, the knurling station, and the double-layer cup output station, the inner cup transfer device is connected to the
On the inner cup station, the outer paper tube forming device is connected to the upper outer paper tube station.
The inner cup and the outer paper tube are knurled
Lamination to achieve the bonding of the inner cup and outer sleeve without cold glue or hot melt glue, improving the working surface during the production process
The cleanliness of the workshop and the sanitation of the workshop can save production resources and improve economic benefits.
