Roll Slitter
Ruian Take Off Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of roll slitter in China. If you're going to buy high quality roll slitter, welcome to get more information from our factory. For price consultation, contact us.
Product Introduction

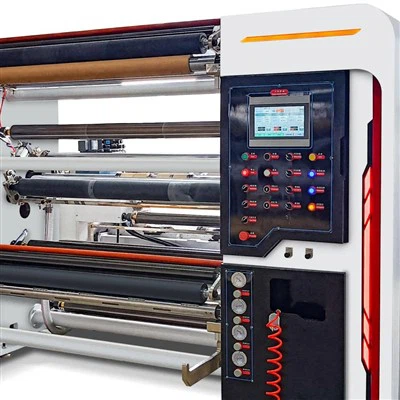

A roll slitter is a piece of equipment that cuts large - diameter rolls of various materials into multiple narrow - width rolls. It is widely used in industries such as paper, textiles, plastics, and metals.
Product Performance:
|
Model |
SYF-1300K |
SYF-1600K |
SYF-2000K |
|
Max.Width of unwinding |
1300mm |
1600mm |
2000mm |
|
Max.Diameter of unwinding |
1600mm |
1600mm |
2000mm |
|
Min. Width of slitting |
50mm(up to materials) |
50mm(up to materials) |
50mm(up to materials) |
|
Max. Diameter ofrewinding |
1500mm |
41500mm |
1500mm |
|
Speed |
10-500m/min |
10-500m/min |
10-500m/min |
|
Total power |
48kw |
59kw |
70kw |
|
Power supply |
380V/50hz |
380V/50hz |
380V/50hz |
|
Weight |
12000kg |
14000kg |
16000kg |
|
Overall dimension (LxWxH) |
7500x3500x2400(mm) |
7500x3800x2400(mm) |
7500x4200x2400(mm) |
Product characteristics:.
1.High-precision slitting
Precise width control: The roller slitting machine is equipped with a high-precision cutting mechanism and positioning system. It can ensure that the accuracy of the slitting width is within a very small range.
2.Stable cutting quality: With high-quality cutting blades and a stable cutting structure, it not only provides precise cutting but also has a long service life, ensuring stable cutting quality during long-term operation.
3.Wide material adaptability
Different material types: Roller slitting machines can process various materials, including fabrics, felts, glass fibers, foams, non-woven fabrics, rubber and vinyl. By adjusting parameters such as blade type, cutting speed and tension, different materials can be adapted.
Automatic tension control: The slitting machine is equipped with an automatic tension control system to ensure that the material does not deform during the slitting process, the rewinding rollers are neatly wound, and the tension is consistent.
Product Application
Plastic Industry: In the plastic industry, roll slitters are used to slit plastic films such as PVC, PE, and PP. These slit plastic films can be used for manufacturing plastic bags, packaging films, agricultural films, and window films. For example, they can slit large - roll PVC films into narrow - width strips for making plastic pipes or decorative strips.
