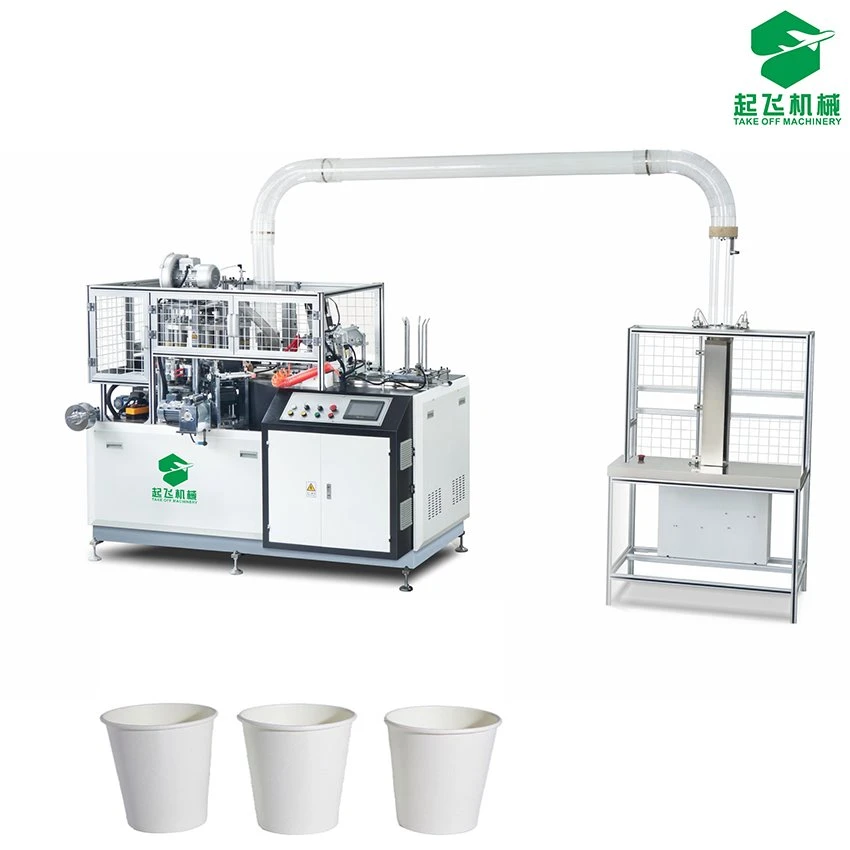

Fully Automatic Paper Cup Making Machine
Ruian Take Off Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of fully automatic paper cup making machine in China. If you're going to buy high quality fully automatic paper cup making machine, welcome to get more information from our factory. For price consultation, contact us.
Parameter
Name | PAPER CUP MACHINE | |
Model | TO-S800型 | |
Paper Cup Size | 3-16 OZ | |
Raw Material | One-side or two-side PE coated paper(Singe PE or Double PE coated paper) | |
Speed | 75-85 pcs/min | |
Suitable paper weight | 100-300g/㎡；±20g/㎡ | |
Voltage supply | 380V(220V) 50HZ | |
cup size | bottom35-70mm，top45-90mm，high32-135mm | |
Working Air Source | 0.4-0.6Mpa; 0.4m³/min | |
General power | 6kw | |
Net weight | 2000kg | |
| Measurement (mm) | Main machine | L:2100mm;W:1200mm;H:1800mm |
Cup collector 100kgs | L:900mm;W:600mm;H:1500mm | |
Cup Side Sealing | EVERGREEN Ultrasonic | |
Bottom Knurling | Heat blowing air | |
The characteristic of the machine:
1.High speed paper cup forming machine comes with two turnplate, open intermittent cam mechanism and gear transmission, longitudinal axis structures. The cam is made in Korea.
2. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly.
3. Bottom sealing by hot air devices, so that the machine is efficient, the hot air device is imported from Switzerland.
paper cup machine technology:
The forming machine forms the fan ring paper into paper cups or paper bowls.
In order to stabilize the package
together, the forming effect is better. The cup clamp mechanism is equipped with a lifting paper strip, and the paper plate is pressed against the lower side of the mold by the rising and
It is then wrapped by the flip cup holder, and the additional configuration of the paper pressing strip with a power source to drive the lifting and lowering efficiency is low, and the control is more complicated. Flip the cup clip to the left
The right two, cooperate with opening and closing, each inverting cup clip is connected with the corresponding connecting rod respectively, and the connecting rod drives the flipping cup clips to flip open.
If the connecting rod lifts and swings, it is more difficult to ensure that the connecting rod lifts and swings stably and isolates dust and oil.
difficult.
New horizontal high-speed paper cup or paper bowl forming machine with seven stations
The main rotating tower forming mechanism of the
Bottom mold station, paper feeding connection station, first cup bottom preheating station, second
Two cup bottom preheating station, bottom rolling station, rolling station and main and auxiliary towers
Connecting station; the auxiliary rotary tower forming mechanism of seven stations has a circular shape.
Connecting stations to the main and auxiliary towers arranged in sequence, cup lubricating stations,
Pre-rolling station, first final rolling station, second final rolling station, cup out
and reserved vacant stations; seven-station main rotary tower forming machine
The station circumferential direction of the structure and the seven-station auxiliary rotary tower forming mechanism
The secondary arrangement direction is opposite, the station layout is more reasonable, and the spatial structure is more
Compact; with the new main drive mechanism, more reasonable and compact; for the rear
Continued modular assembly of individual assemblies provides support. its carousel feeder
structure, the turntable is driven by the servo motor to rotate to realize the indexing rotation.
The structure is simple and compact, and the operation is stable to meet the high-speed demand.
