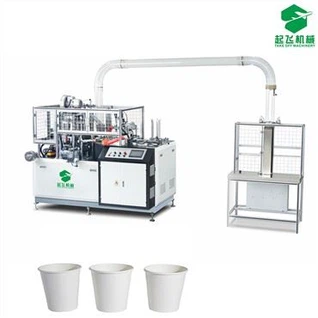

Paper Cup Forming Machine
Ruian Take Off Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of paper cup forming machine in China. If you're going to buy high quality paper cup forming machine, welcome to get more information from our factory. For price consultation, contact us.
Parameter
Name | PAPER CUP MACHINE | |
Model | TO-S800型 | |
Paper Cup Size | 3-16 OZ | |
Raw Material | One-side or two-side PE coated paper(Singe PE or Double PE coated paper) | |
Speed | 75-85 pcs/min | |
Suitable paper weight | 100-300g/㎡；±20g/㎡ | |
Voltage supply | 380V(220V) 50HZ | |
cup size | bottom35-70mm，top45-90mm，high32-135mm | |
Working Air Source | 0.4-0.6Mpa; 0.4m³/min | |
General power | 6kw | |
Net weight | 2000kg | |
| Measurement (mm) | Main machine | L:2100mm;W:1200mm;H:1800mm |
Cup collector 100kgs | L:900mm;W:600mm;H:1500mm | |
Cup Side Sealing | EVERGREEN Ultrasonic | |
Bottom Knurling | Heat blowing air | |
paper cup machine technology:
The material of the paper cup is coated paper. The structure of the paper cup is composed of the cup body and the bottom of the cup. The cup body is mainly made of die-cut.
Cup body paper, referred to as paper, the paper is in the plane shape of a paper cup, and the paper is completed by the actions of paper feeding, cup body sealing and other mechanisms
for the cup body. The cup body sealing mold is a sealing mechanism, and the cup body sealing mold is the main key component of the sealing mechanism.
The phantom is in the shape of a truncated cone, and the sealing mold is composed of two clamping bodies that can be enclosed into a hollow truncated cone shape. The cup phantom and the sealing mold
The cup body can be sealed by cooperation, but because the working and processing structure, installation and driving structure of the clamping body are integral,
The work is difficult and the scrap rate is relatively high, resulting in a very high cost, which is not conducive to widespread use.
A split type holding clip for paper cup machine
The device includes a frame and a cup phantom arranged on the frame in a round table structure, and a cup phantom for wrapping the paper sheet on the cup phantom
A sealing mold on the outer side wall, the sealing mold includes a sealing button mold located on opposite sides of the cup body mold, and a sealing mold for driving the sealing
The buckling die is close to or away from the buckling die driving part of the cup body die, and the side of the sealing buckling die facing the cup body die is provided with a
The paper sheet is pressed against the sealing arc surface of the outer side wall of the cup body mold, and the button mold driving part includes a button mold hinged on the frame
seat, and a clamping die drive mechanism arranged on the frame and capable of driving the clamping die base to rotate around the hinge shaft with the frame, the sealing
The buckle die is installed on the side of the buckle die base facing the cup body mold, and the buckle die drive mechanism drives the buckle die base to rotate through the seal.
The snap mold presses the paper sheet on the outer side wall of the cup mold.
FAQ
1.Q:Do you have the manual book ?
A:Yes, and if necessary , our engineers are available to service overseas .And our machines are highly automatical and easy to operate.
2.Q:How long does it usually take you to make the delivery.
A:As a rule ,we deliver our machine within 1 month , and of cause it will take longer for special orders , but in no case would it take longer than 3 months.
3.Q:The voltage in our country is different from yours,does the machine can be changed?
A:Yes, we can make the change for customers
