Fully Automatic Paper Cup Machine
Ruian Take Off Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of fully automatic paper cup machine in China. If you're going to buy high quality fully automatic paper cup machine, welcome to get more information from our factory. For price consultation, contact us.
Parameter
Name | PAPER CUP MACHINE | |
Model | TO-S800型 | |
Paper Cup Size | 3-16 OZ | |
Raw Material | One-side or two-side PE coated paper(Singe PE or Double PE coated paper) | |
Speed | 75-85 pcs/min | |
Suitable paper weight | 100-300g/㎡；±20g/㎡ | |
Voltage supply | 380V(220V) 50HZ | |
cup size | bottom35-70mm，top45-90mm，high32-135mm | |
Working Air Source | 0.4-0.6Mpa; 0.4m³/min | |
General power | 6kw | |
Net weight | 2000kg | |
| Measurement (mm) | Main machine | L:2100mm;W:1200mm;H:1800mm |
Cup collector 100kgs | L:900mm;W:600mm;H:1500mm | |
Cup Side Sealing | EVERGREEN Ultrasonic | |
Bottom Knurling | Heat blowing air | |
The characteristic of the machine:
1.The new machine with higher working speed (100pcs/min) than RD-12/22 machine, so there is extra Switzerland Leister hot air device for the side sealing, so side sealing is done by both Hot air and Ultrasonic.
2. Cup side sealing by ultrasonic, Evergreen which is made in Taiwan.
3. Cup top curling has two steps, rotary curling and heating figuration, which makes the curling more stable and with better appearance (round and smooth).
paper cup machine technology:

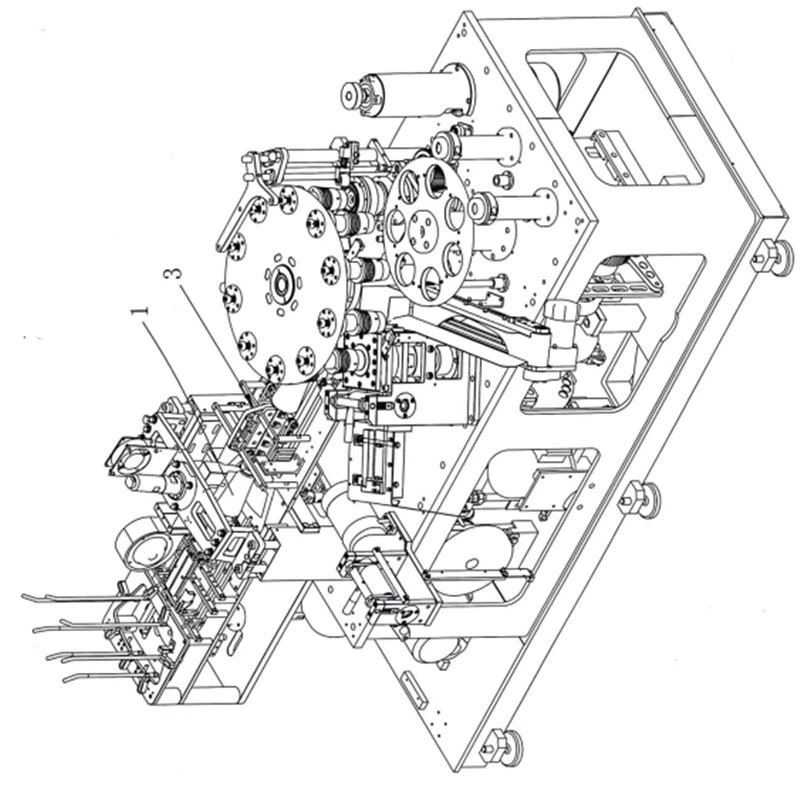

In the process of forming paper cups or paper bowls, the paper sheets (which can be preheated) are fed into the paper tube forming mechanism to make the paper tube
(that is, the body of the paper cup or bowl) is formed. During the forming process of the paper tube, the forming die is lowered by the cup clip below at the forming station.
The square pieces of paper are enclosed on the forming die, and the paper pieces will be enclosed and overlapped to form a paper tube, and then the forming die is adjusted by the ultrasonic wave above.
After the paper tube is formed, the paper tube is taken out from the forming mold and transported forward.
To other mechanisms in the subsequent molding equipment for processing in other processes.
Paper tube forming mechanism, including forming die
The mold is characterized in that: it also includes a demoulding device and an auxiliary molding device, and the demoulding device includes a demoulding head for demoulding, and the demoulding device is used for demoulding.
The die head is drivingly connected with the stripping transmission device, and the stripping head is driven by the stripping transmission device to move the paper tube on the forming die forward.
Enter the auxiliary forming device, the auxiliary forming device includes a core support and a top support arranged above the core support, and the core support is located in
In front of the forming mold, the core support and the forming mold are connected to the paper feeding cylinder through sleeves, and the opposite sides of the core support and the top support are provided with
Rollers and/or belts, the rollers or belts on the core support and/or the top support are connected to the drive device, the rollers on the core support
The rollers or belts are matched with the rollers or belts on the top bracket for paper tube clamping and conveying.
