Panty Liner Machine

Ruian Take Off Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of panty liner machine in China. If you're going to buy high quality panty liner machine, welcome to get more information from our factory. For price consultation, contact us.

Machine capacity

Full servo type: 400,000 pcs/10 hours

Semi servo type: 300,000 pcs/10 hours

Frequency type: 200,000 pcs/10 hours

If you want know the details of sanitary napkin raw material,pls contact us by email or whatsapp

Main parameter

1.Supply:380V,50HZ 3 phase 4 wire+ground wire

2.Air pressure:0.6-0.8Mpa;3 m3/min

3.Product size: 240mm 280mm 320mm

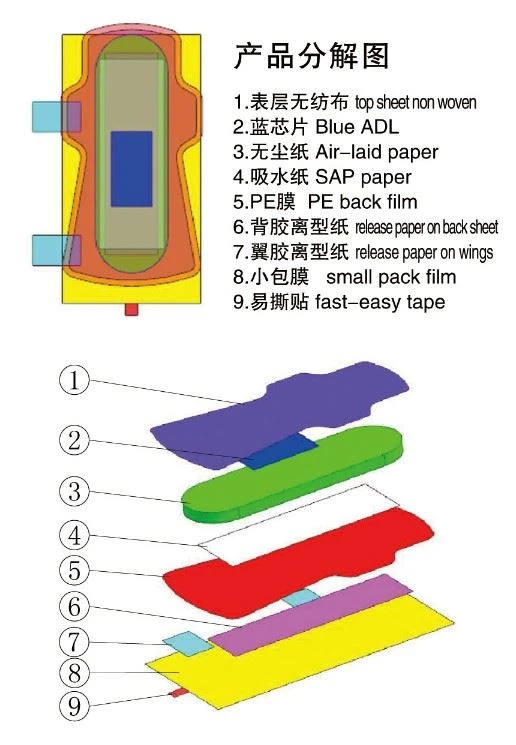

4.Product structure:

(1)Pulp type:surface layer+ADL+cotton core(tissue paper+pulp+SAP)+PE film+center release paper+two side release paper+package film+hot melt glue+tape

(2)Ultra-thin type:surface layer+ADL+cotton core(air laid+SAP paper)+PE film+center release paper+two side release paper+package film+hot melt glue+tape

5.Power:150KW

6.Design speed:800 pcs/min, stable speed(test speed):600 pcs/min

7.Finished rate: ≥97%

8.Machine size（m）:25*7*2.5(length*width*height)

Configuration

1.Inner cutter:use M7 material from USA,adapt servo motor drive,waste material collect to bin

2.ADL cutter:adapt servo motor drive and high tempurature composite

3.Center emboss device:adapt servo motor drive

4.Edge emboss device:adapt servo motor drive,rolling guarantee the surface layer and PE film composite tightly.equip with air cylinder add the pressure

5.Outter cutter device:use M7 material from USA,adapt servo motor drive,waste material collect to bin

6.Center release paper cutter:equip with a set web guide

7.Two side relese paper cutter:equip with a set web guide

8.Product 180°turn device

9.Product 90°rotate device adapt servo motor drive

10.Package film adding

11.Folding device:adapt servo motor drive

12.Center glue adding device

13.Package film cutter device

14.Tape cutter:heater the cutter

15.Reject device:auto reject(use air injection)

16.Finish product arrangement

17.Transpotation and drive

Advantage

1.Use servo motor control the conveyor belt speed,can adjust the speed at touch screen,the suction box design can be adjust avoid run wrong way,can ovserve the suction box by glass,the spec of conveyor belt will be give by a nameplate which will install to suction box for easy change the belt.

2.Package adapt fall folding type,guarantee folding stable and high speed

3.Use high quality cardan and import timing belt

4.Rolling adapt new type cardan guarantee roll stable

5.Timing belt use belt tensioner.

6.The wire,pipe and windpipe layout reasonable,have more space for repair.
