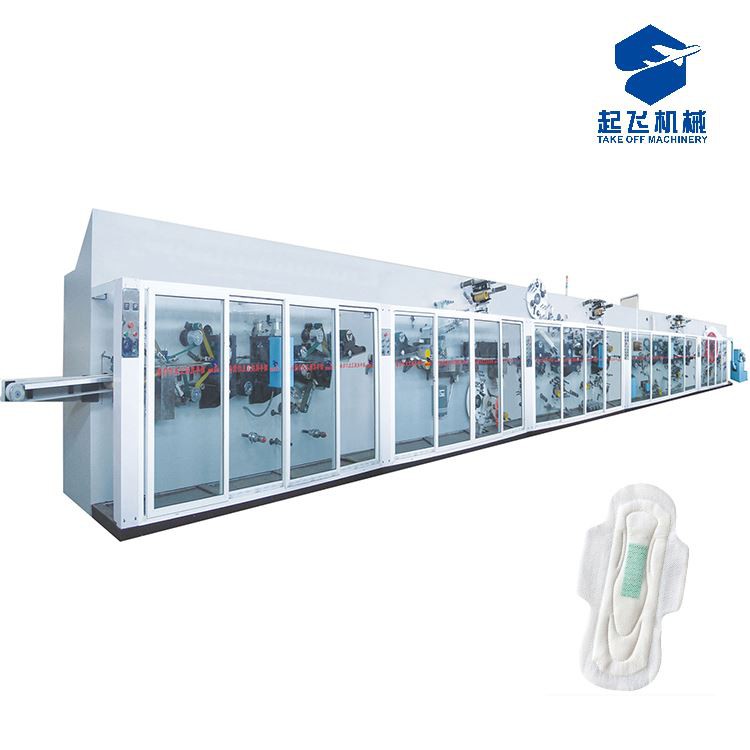

Sanitary Pad Machine

Ruian Take Off Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of sanitary pad machine in China. If you're going to buy high quality sanitary pad machine, welcome to get more information from our factory. For price consultation, contact us.

Machine capacity

Full servo type: 400,000 pcs/10 hours

Semi servo type: 300,000 pcs/10 hours

Frequency type: 200,000 pcs/10 hours

If you want know the details of sanitary napkin raw material,pls contact us by email or whatsapp

Main parameter

1.Supply:380V,50HZ 3 phase 4 wire+ground wire

2.Air pressure:0.6-0.8Mpa；3 m3/min

3.Product size: 240mm 280mm 320mm

4.Product structure:

(1)Pulp type:surface layer+ADL+cotton core(tissue paper+pulp+SAP)+PE film+center release paper+two side release paper+package film+hot melt glue+tape

(2)Ultra-thin type:surface layer+ADL+cotton core(air laid+SAP paper)+PE film+center release paper+two side release paper+package film+hot melt glue+tape

5.Power:150KW

6.Design speed:800 pcs/min, stable speed(test speed):600 pcs/min

7.Finished rate: ≥97%

8.Machine size（m）:25*7*2.5(length*width*height)

Machinery part

1.Machine director:according to client’s demand

2.Machine colour:according to client’s demand

3.Machine control:Mitsubishi system,PLC control,touch screen operate

4.Drive and transportation:adapt mitsubishi servo motor control drive.

cardan shaft,planetary gear and timing belt transporatation.

5.Main raw material unwinding control:adapt servo motor control each part

6.Tension control system,auto splicing device(6 sets):tissue paper(air laid paper),SAP paper,surface layer,PE film,ADL,package film

7.Web guide(9 sets):tissue paper+SAP paper+ADL+surface layer+PE film+center release paper+two side release paper+package film

8.When splicing the raw material,rolling diameter can be adjust accurately,save the material

9.Adapt servo motor control pulp feeding,the quantity of pulp can be set by touch screen

10.Quality control:machine will be auto-stop and give a alarm when the material is finish,machine will give a alarm when the SAP is finish,reject the waste product which is lack blue core,reject the package film which is lack product,reject the waste product when splicing the material

11.Finish product output

12.Machine install safety glass door

13.Accessories adapt CNC precess,guarantee the accessories accuracy

14.Machine frontal part adapt surface treatment,make it beautiful and avoid rust
