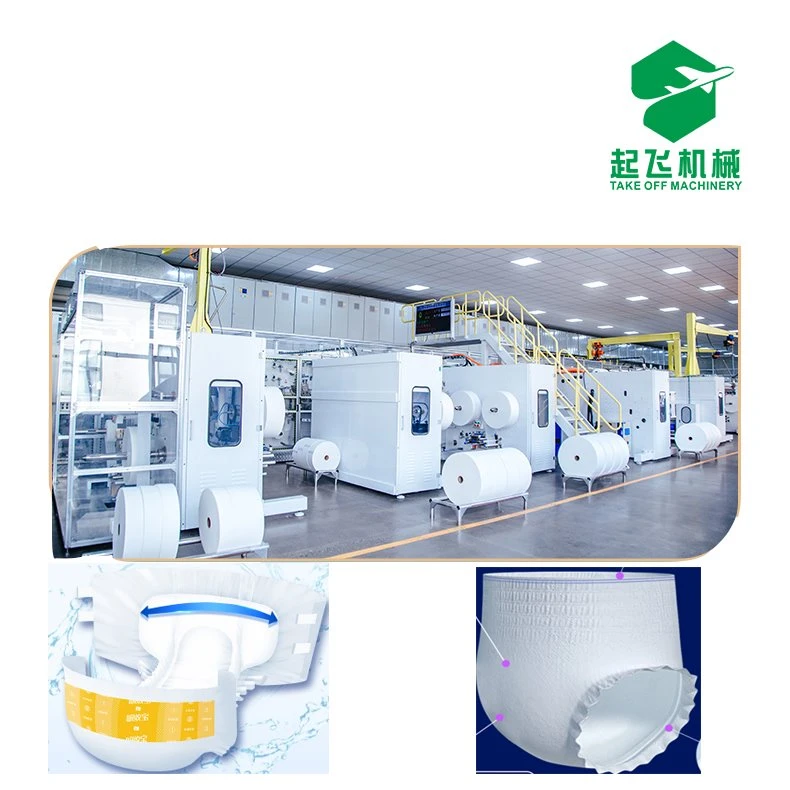

Adult Pant Diaper Machine

Ruian Take Off Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of adult pant diaper machine in China. If you're going to buy high quality adult pant diaper machine, welcome to get more information from our factory. For price consultation, contact us.

Adult diaper machine

Adult pull up diaper machine

Adult pull up diaper machine drawing

1.Air & wind pipes

1）The drummer, dust & wastage collecting, equipped the vacuum fans.

2）Air pipes located inside the machine, adopting the PVC square pipe quality, less static, unify air supply, pressure adjustable.

3）Air pipes are unified air supply, connecting the nearest branch pipes.

4) Frontal tape, side tape suck section, have individual air pump

2.Electric configures & features：

1. Inspecting system：

1）Raw jointer auto checking & rejecting

2）Raw broken alarm & stop line

3）SAP lower position alarm

4）Hook side tape lacking detecting, auto rejecting.

5）Spandex broken alarm

2.Unwind & splice：

1）Raw splice at stable running & unwinding, manual or auto alternative.

2）Splice speed can be setup by Interface.

3）The diameter of material can be precisely adjusted while splice, save the raw.

3. Feeding control:

1）Cellulose pulp feeding adopt servo control, Interface setup the feed-in quantity.

2）SAP spray is servo control, continue working, interface setup the spray weight, lower position alarm.

3）Elastic stretching rate is servo control, interface setup.

4. Human-machine Interface：

1）Interface install at machine middle position, English & Chinese language, Big-screen LED display.

2）Raw materials lacking, jointer, splice, fans & vacuum pump jump-off, all display the real-time information.

3）Auto rejecting & rejecting position can be setup

4）Production speed(pcs\min), shift output, rejecting quantity, total capacity, are interface display.

5. Heating system:

1）Rotary set temperature control by heating couple, & temp. unit.

2）Heating rotary set adopt heating tube.

3）Power track-in & signal output work by mercury rotary connector.

4）Heating rotary set use pneumatic compress, auto lifting while line stop, manual control enabled.

6. Safety devices：

1）Safety doors equipped

2）Frontal & ear side E-stop & safety line.

3）Speed-up & down, alarm device button, easy operation

4）safety plate install at die entrance.

5) Glue applicators place on the second platform on the rear side

6)Electric cabinet with air condition.

7)Inverter start for the motors and fans which more than 30KW, reduce the current surge when machine start. STAR DELTA CONNECTIONS, NOT SOFT STARTER DEVICE. 30KW

7. Rear side wire put into the groove, electric & electronic routes, independent switches.

8. Electronic voltage: 24V.

9. Spray & coat glue control, setup the rear upper platform.
