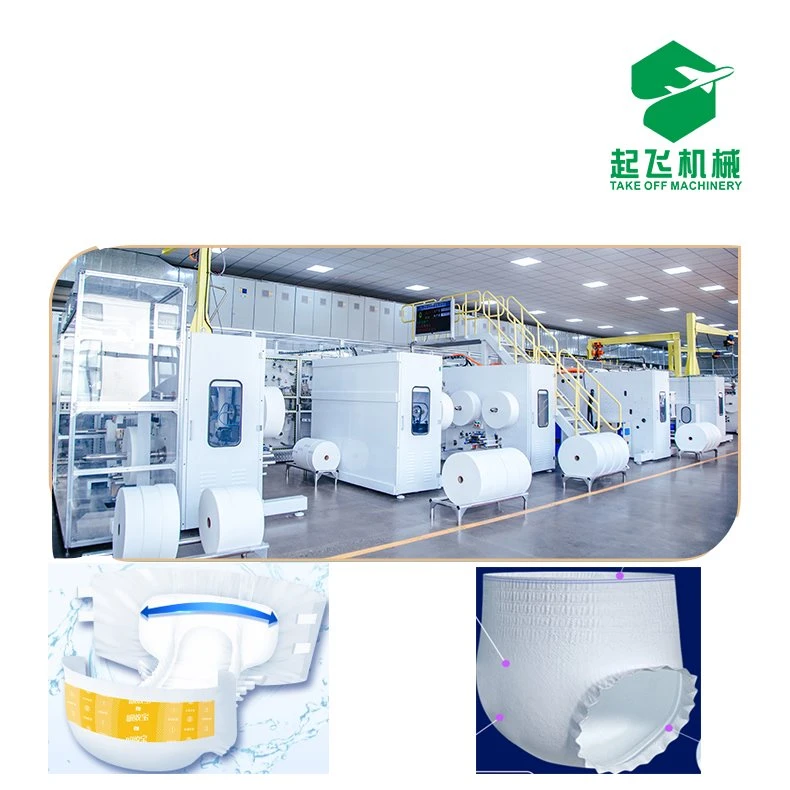

Adult Pull Up Diaper Machine

Ruian Take Off Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of adult pull up diaper machine in China. If you're going to buy high quality adult pull up diaper machine, welcome to get more information from our factory. For price consultation, contact us.

Adult diaper machine

Adult pull up diaper machine

Adult pull up diaper machine drawing

1.Elastic waist applicator

1）Passive material cradle, spare material cradle

2) Splice with speed reduction, auto rejecting

3) Raw materials inspecting, broken auto alarm & stop line

4) Color jointer detecting, auto rejecting

5)Auto web guiding 8, width: 250mm

2.Back nonwoven applicator

􀂾 Dual pneumatic shaft, independent servo unwind, tension control

􀂾 Zero speed auto splice, auto rejecting、

􀂾 Raw materials inspecting, broken auto alarm & stop line

􀂾 Color jointer detecting, auto rejecting.

􀂾 Auto web guiding 9, width: 900mm

3.PE film applicator（Clothlike offline）

􀂾 Dual pneumatic shaft, independent servo unwind, tension control

􀂾 Zero speed auto splice, auto rejecting、

􀂾 Raw materials inspecting, broken auto alarm & stop line

􀂾 Color jointer detecting, auto rejecting.

􀂾 Auto web guiding 10, width: 900mm

4.Frontal tape（two types: complete one and two pcs for left and right）

1）Short cut adopt craping

2) Online glue coating

3)Spare material cradle

5. Leg elastic spray

1）3 lines per side, stretching rate is : 1:2.5, machine stop line upon the elastic broken.

2) Roll type elastic raw use

3) Auto feeding, servo control, elastic rate can be setup by interface

4) Elastic broken auto alarm & stop line

17. Topsheet, core & backsheet compound

18. Camera visual system(Omron)

6.Side tape

1）Flat cut suck roll adopt single air pulp, increase wind suction, to reduce stick force

2) Cutter stable cut, distance adjust by hand, easy operation

3) Fall off checking, auto rejecting

4) Spare material cradle

5)Auto web guiding 11/12/ 13/14

20.Side tape inner fold unit

21.Arc shape cutter unit

22. Wastage separated and collection unit

23. Three rolls compressed, pneumatic given pressure.

24. Product shape die cut

25. Product cross fold

26.Three-rolls compressed device.

27. Product final cut

28. Product tri-fold

29. Rejecting outlet

7. Drive system

1）Full line adopt servo motor driven, size change by interface set-up.

2）Suffered parts use wide time belts, over-bridge less use.

3）Rear drive equip air-out & watching windows.
