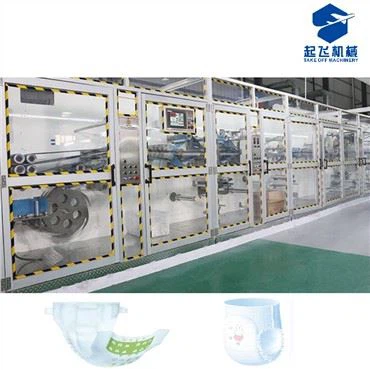

I Type Baby Diaper Making Machine

Ruian Take Off Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of i type baby diaper making machine in China. If you're going to buy high quality i type baby diaper making machine, welcome to get more information from our factory. For price consultation, contact us.

Main parameter

Product size:XL、L、M、S

Product Structure:leak protect non woven,surface layer non woven,ADL,up non woven,down non woven wrapping cotton+SAP,bottom film,frontal tape( 、two side tape，3 dimension protect rubber,leg rubber

Cotton core structure:straight pulp

Design speed:700 pcs/min(M size)

Stable speed:600 pcs/min(M size)

Production center line distance:material center line to machine wall is 300mm

Material distribution:surface absorber on top,complex non woven is below

Product weight deviation:±5%

Product finish product rate≥97%（not include cause by glue machine and material splicing)

Machine efficiency：≥85%

Power:265KW(not include glue machine and air compressor)

Supply:380V±5%、50Hz 3 phase 4 line+ground wire

Air pressure:0.6-0.8Mpa(client prepare the air resource)

Machine size（length*width*height)：30m*7m*3.8m(for reference only) 120

Basic configuration

Leg rubber feeding

1.3 lines each side,drawing force is 1:2.0-2.3,let rubber don’t break and influence machine run

2.Can use roll rubber material

3.Initiative feeding material,servo motor control,can adjust the degree of tightness at touch screen

4.Material break detection ,give a alarm and stop machine

Two side tape supply

1.Passivity material shaft,have spare shaft

2.Automatic reduce speed,auto reject

3.Detection the splicing part material and reject

4.Equip with web guide(12 13),width is 150mm

5.The tape conveyor control by servo motor

6.Cutter

Surface layer,absorber core,bottom film complex by glue and be pressure

The first finish product 3 roll pressure adapt air cylinder

Product arc-shape cutter

Product warped lengthways

The second product pressure conveyor adapt air cylinder add the pressure

Finish product cutter

The finish product be trice fold

Have a waste product way out,auto reject

Stacker machine,control by servo motor,have double exit,the product can be stack range 1 10-36 pcs

Drive system

Whole machine drive by servo motor,can adjust the size by touch screen

Widen the timing belt which bear big power,

Back drive part equip with exhaust windows and observe windows
