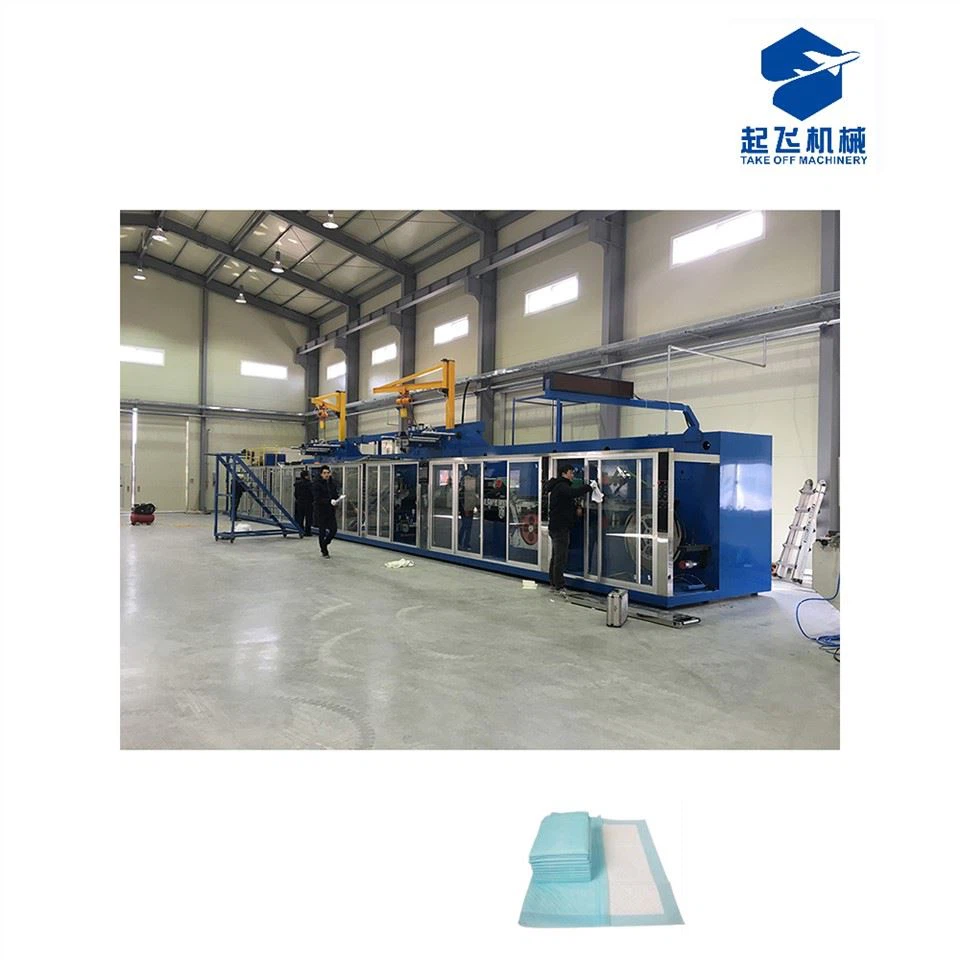

Name: China Adult Incontinence Pad Making Machine Manufacturers, Factory - Good Price - Take Off Machinery
Brand: Take Off
SKU: 166239756

Ruian Take Off Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of adult incontinence pad making machine in China. If you're going to buy high quality adult incontinence pad making machine, welcome to get more information from our factory. For price consultation, contact us.

Main parameter

1.1)Product size:length 350-1800mm,width 300-600mm,thickness can be choose

1.2)Product structure:surface layer,tissue paper,pulp,SAP,PE film

1.3)Supply:380 V 50HZ

1.4)Power:175 KW(exclude glue applicator)

1.5)Air pressure:1100L/MIN, 6-8BARs

1.6)Finish product rate≥98%(exclude caused by glue applicator and splicing)

Model	Width	Speed（m/min）	Driven Mode
TO-BKA-600	600mm	300	Full-servo
TO-BKA-800	800mm	250	Full-servo
TO-BKB-600	600mm	200	Semi-servo
TO-BKB-800	800mm	150	Semi-servo
TO-BKC-600	600mm	150	Frequency
TO-BKC-800	800mm	120	Frequency
TO-BKD-600	600mm	80	Single motor
TO-BKD-800	800mm	60	Single motor

Optional part
Release paper device	（optional）
Servo motor	（optional）
Parts brand and origin	China or import parts
Stacker	（optional）
Manual packing machine	（optional）
Full auto packing machine	（optional）
Glue applicator machine	China or USA
Recycled pulp device	（optional）
Glass safety door	（optional)
Camera monitoring system	(optional)
Dust collection machine	（optional)

Machine configuration

1.Air

1.)The main air pipeline made by iron,the branch air pipeline be linked by strengthen plastic pipe.

2.Centrifugal blower brand is famous in china and main windpipe equip with reducing value oil and water separator.

2.Electrical system

1.)Main motor adapt frequency-converter control the driving,vice motor timing follow driving.

2.)Cutter system,folding system and device system adapt servo motor driving.

3.)Prompt bell button and speed control button installed in somewhere so than you can control machine easily.

4.)Emergency stop button install in the side of machine,so that your worker will be safer

5.)Glue applicators connect to host machine,then they can cooperation perfect.

6.)Our machine adapt touch screen,the man can operate the machine by the touch screen,like change the size of the product ,change the quantity of the SAP and so on,then the control will be more easier.

FAQ

1.Q:Are you a factory or trading company?

A:We are a factory and we have years of experience of underapd machine.

2.Q:Does the machine be able to cut different size ?

A:Yes absolutely , you can set any width by the PLC controler.

3.Q:Do you make machines according to specifications?

A:Yes,we do design different machines for special purpose.
